CVLIFE Laser Scope Leveling Kit Picatinny Rail Mount for Reticle Leveling

Description

About Laser Scope Leveling Kit

  • Class IIIA laser, less than 5mW.
  • High Accurate: The CVLIFE Laser Scope leveling kit is a highly accurate scope leveling kit. It is the first scope leveling to use a laser for levelling and is the highest precision available. Makes it easy to get the scope perfectly level.
  • Set Includes: Laser, Laser Base, H2.0 Allen Wrench, H4.0 Allen Wrench, Vertical Marking Base, CR1/3N Battery, Adapter Sets, Mirror, User Manual.
  • Easy Installation:Correct scope leveling is the key to accuracy. Simply follow the instruction steps to install and then level the scope. Finally use your own scope tools to tighten the scope to prevent loosening.
  • Long-lasting Material:We use high quality aluminium alloy material and anodize the surface. Strong and long-lasting.

Scope Leveling Kit Description

CVLIFE Red Laser Scope Leveling Kit for Reticle Leveling

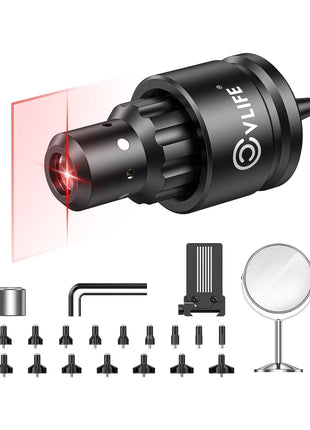

CVLIFE Laser Scope Leveling Kit Package List:

1* Laser and Laser Base
1* H2.0 and H4.0 Allen Wrench
1* Vertical Marking Base and Mirror
1* CR1/3N Battery
1* .17-12GA Adapter Sets

CVLIFE Laser Scope Leveling Kit Package List

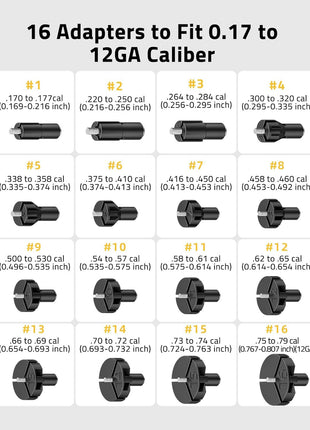

The 16 upgrade adapters are perfect for 0.17 to 12GA calibres. Numerical markings on the adapters help you select the correct calibre adapter faster.

Scope Leveling Kit with 16 Adapters for 0.17-12GA Caliber

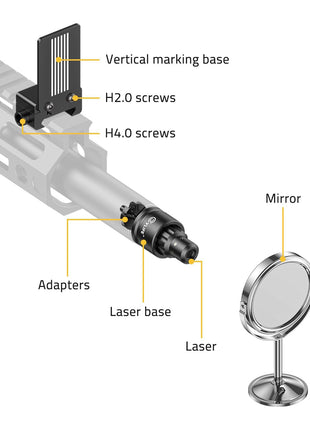

Scope Leveling Kit Installation Instruction

scope reticle leveling kit installation instruction rifle leveling kit install guide scope mounting kit laser leveling tool scope mounting tools for picatinny rail

Step 1

Select the appropriate size adapter and install it into the laser base.

Step 2

Install the adapter into the barrel.

Step 3

Mounting the laser into the laser base.

Step 4

Mounting the vertical marking base to the Picatinny rail.

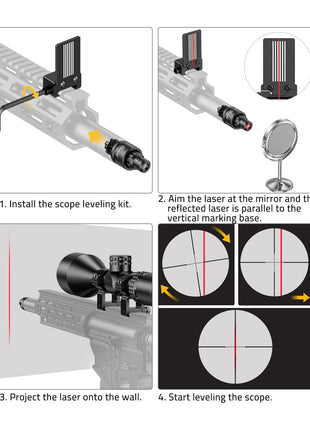

Scope Leveling Kit Guide

rifle scope leveling kit rifle scope mounting kit scope mounting kits leveling instruction scope mounting kit for reticle leveling

Step 1

Use the laser light reflected from the mirror to illuminate the vertical marking base and adjust the laser so that it is parallel to the marking line.

Step 2

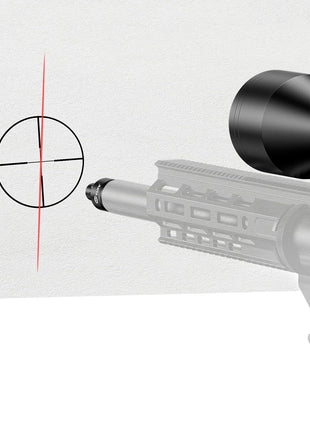

Then remove the vertical marking base and project the laser onto the wall.

Step 3

Observe the laser line and reticle through the scope, then adjust the scope so that the reticle coincides with the laser line.

Step 4

Finally use the scope tool to tighten the screws and put the laser scope levelling tool back in the box.

Laser Scope Leveling Kit for Picatinny Rail with 16 Adapters
Link 1-inch scope level 30mm scope level 34mm scope level 35mm scope level
Size 1 inch 30mm 34mm 35mm
Material Aluminum Aluminum Aluminum Aluminum
Calibration 8mm 8mm 8mm 8mm
Weight 0.15 pounds 0.15 pounds 0.15 pounds 0.15 pounds

Product Information - Technical Details

CVLIFE Laser Scope Leveling Kit Picatinny Rail Mount for Reticle Leveling
